Name: 20-UP GLADIATOR 2.5" STAGE 7 SUSPENSION SYSTEM (TUBULAR)
SKU: 412675

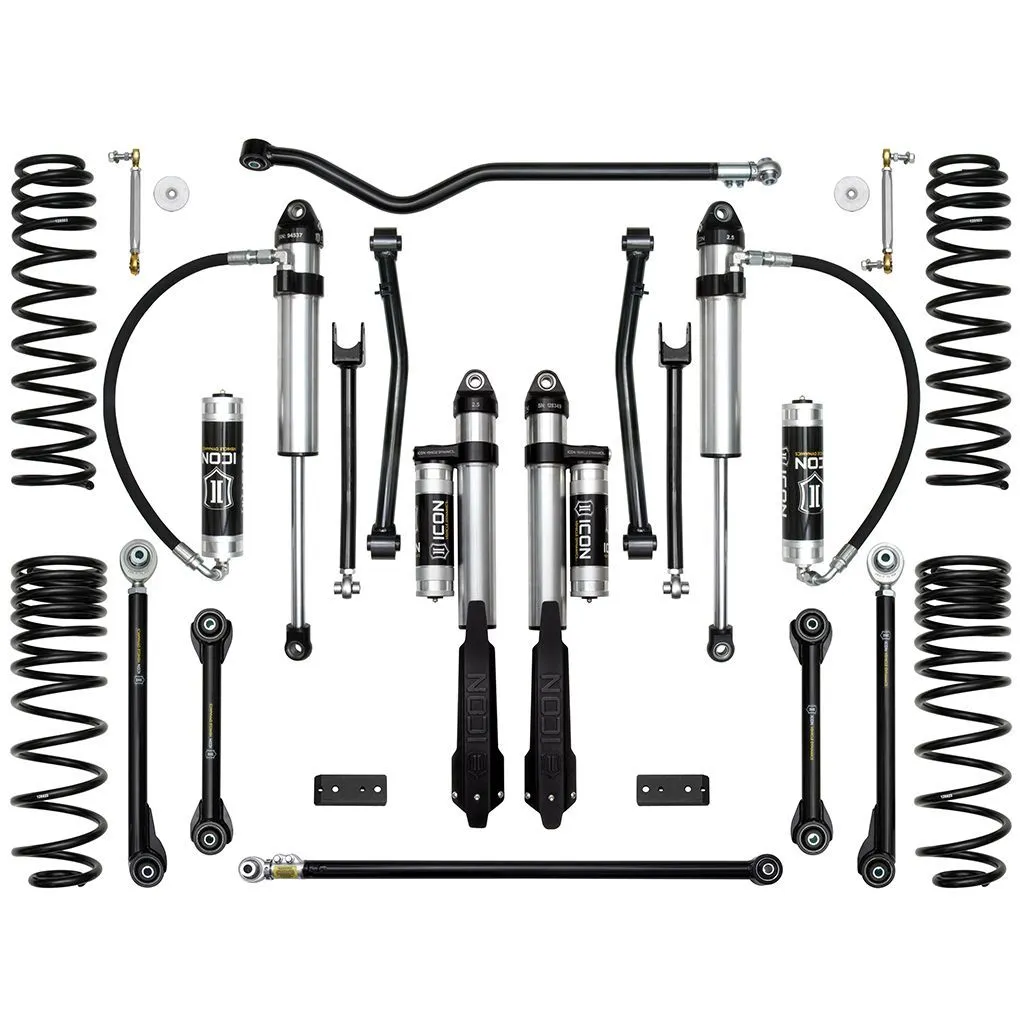

The Stage 7 ICON 2.5” Suspension System for the Jeep Gladiator is the ideal setup for drastically improving off-road performance and overall ride quality for the application that will see frequent heavy off-road use. This complete suspension system features ICON’s proven 2.5 Series shocks, 2.5” lift dual-rate front coil springs, tubular steel fixed lower and adjustable upper front links, billet front sway bar links, a triple-rate rear coil spring kit, tubular steel fixed upper and adjustable lower rear links, a rear sway bar relocation kit, front and rear adjustable track bars, and all necessary hardware for install. This system provides an increase of over 30% front and 20% rear wheel travel and was designed around the use of a 35” tire. For those looking to run a 37” tire this can be achieved with the ICON Jeep JT Bump Stop Spacer Kit (Part #22071).

2.5" lift height
Fits 35" tires (37" with extended bump stop spacer kit)
33% front, 23% rear increase in wheel travel
Improves on and off-road ride quality over stock
Front upper and lower links included for caster angle correction and improved front end articulation
Rear tubular upper and lower links improve rear end articulation and allow for pinion angle adjustment
Dual rate front coil springs with lifetime guarantee against sagging/breakage
Triple rate rear coil springs with ICON-engineered droop, ride, and overload rates
2.5 Series shocks with vehicle specific valving
Front and rear track bars ensure proper alignment and improved articulation
Adjustable, billet aluminum front sway bar links
100% bolt-on system makes for an easy install
“ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
